Passport Scanner Sinosecu Multi-purpose Single Step ID Card Reader and MyKad Reader

Name: Passport Scanner Sinosecu Multi-purpose Single Step ID Card Reader and MyKad Reader
Brand: Sinosecu Technology Corporation.
Price: 1.00 USD
Availability: InStock

All Products

Passport Reader for KR
(9)

Passport Reader for APR
(120)

Passport Reader for EBR
(49)

Passport Reader for PSPR
(39)

Sinosecu Passport Reader
(3)

Certification

I'm Online Chat Now

Passport Scanner Sinosecu Multi-purpose Single Step ID Card Reader and MyKad Reader

Large Image : Passport Scanner Sinosecu Multi-purpose Single Step ID Card Reader and MyKad Reader

Product Details:

Place of Origin:	Beijing, China
Brand Name:	Sinosecu

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$1,099.00/units >=1 units

Contact Now

Passport Scanner Sinosecu Multi-purpose Single Step ID Card Reader and MyKad Reader

Description

Products Status:	Stock	Type:	Passport Scanner
Scan Element Type:	CMOS	Colour Depth:	24 Bit
Interface Type:	Usb	Max Paper Size:	127*88 Mm
Optical Resolution:	400 DPI	Scan Speed:	1-2 Seconds
Warranty(Year):	1-Year	After-sales Service:	Others
Color:	Grey	Window Size:	127mm*96mm
Megapixels:	3.0	Interface:	USD 2.0
Field Of View:	127*96mm	Image Format:	JPG, BMP, TIFF
Certificate:	CE & FCC &RoHS	Dimensions (W X D X H):	175mm199mm140mm
Light Source:	White, IR	Weight:	1.25kg

Product Description

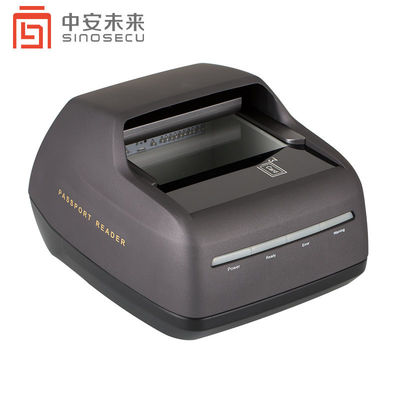

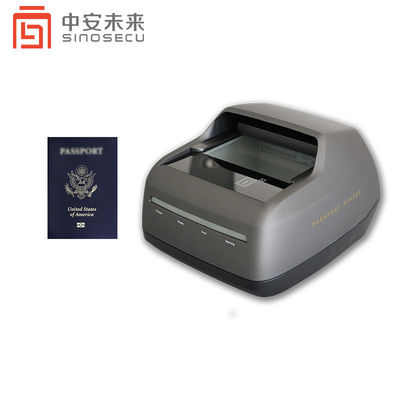

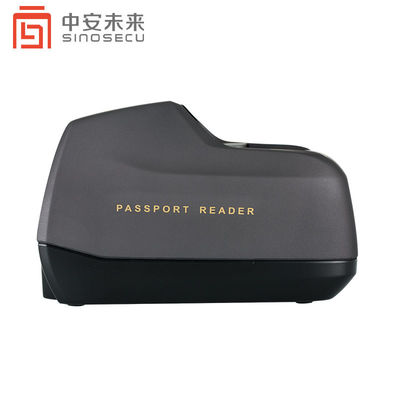

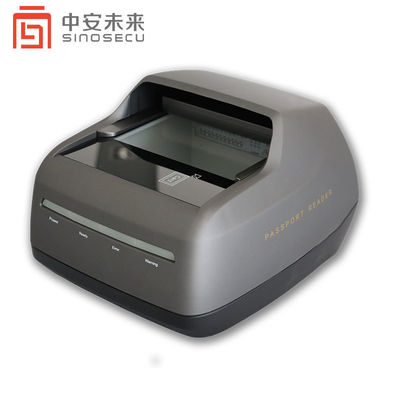

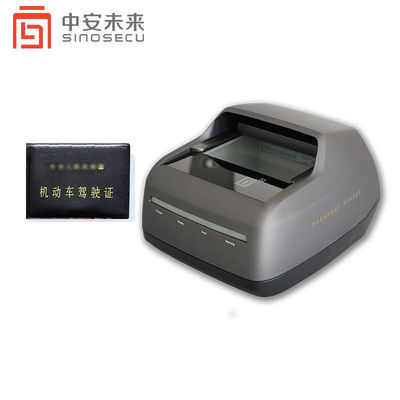

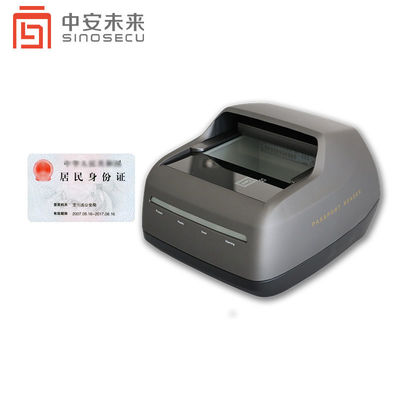

Sinosecu Passport Reader is a multi-purpose device based on high-precision OCR algorithm. It consists of a unique hardware device and advanced OCR SDK/API. It can automatically capture data from ICAO compliant and non-compliant travel documents, including passports, e-passport, visa, ID card and driver license. It provides an ideal solution for fast identity verification.

Features for passport id card reader

Read ICAO 9303 compliant & non-ICAO compliant documents
Obtain digital data from contactless chips (RFID)
Capture images in white, IR & UV illumination
Combine with high accuracy OCR SDK
Applicable for self-service kiosk
Provide customization OCR service

Application of passport MRZ Scanner

Access control and visitor registration system
Bank counter user information registration system
Securities company customer management system
Kiosk for self-service solution
Restaurant front desk registration system
Hotel customer information registration system and public security management
Duty-free shop customer information registration system
Customer identity management system for casino, night bar, VIP club and other occasions
Train and bus station passenger management
Telecom service account application system

Specification

Supported Documents
Machine Readable Zone	ICAO 9303 standard compliant documents: ID-1( Identity card) ID-2( Passport, Visa) ID-3( Passport)	RFID	Read and write contactless ICs according to ISO/IEC 14443-S( Type A/B) Read smart card according to ISO/IEC 7816; Support e-passport BAC & EAC Support active/passive authentication

Software
Supported Operation System	Windows 7,8, 10, Vista, XP,Windows Server 2003 & 2008, Linux Ubuntu, CentOS, RedHat	Development Kit	Complete OCR SDK including DLLs, OCXs WebSocket, Samples and Demo Program
Programming Language	C#, C/C++, Java, Delphi, Visual Basic 6.0, VB.NET	/	/

Hardware
Dimension	175199140mm	Weight	2kg
Interface	USB 2.0	Status LEDs	Power, ready, error and warning
Buzzer	Build-in buzzer	Warranty	one year, extensible

Resolution	400 DPI	illumination	Visible, IR and UV
Color Depth	24 bits/pixels	Sensor	CMOS 3.0 megapixels
Image format	JPG, BMP, PNG	Field of View	127*96mm

Illumination.

Sinosecu full page passport reader is used to capture white, infrared images and save the image to the configurable path. And some features are optional such as RFID chip reading and the UV image, as shown in the following pictures. And the UV is for the document authentic check.

Visible light Image

Infrared Image

UV image

MRZ Reading.

RFID Chip Reading.

Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B).
Read smart card according to ISO/IEC 7816
Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC)
Support active/passive authentication.

SDK for Free.

We provide SDK for the reader and a second development is necessary to integrate the reader into your system, and we provide sample codes in java, VB .Net C++, C# and so on and SDK was given for free, no extra charge.

Our Company

Sinosecu Technology Corporation is the world’s leading developer and provider of OCR (optical character recognition) technology and products in different fields. Through a long term cooperation with Tsinghua University, we have successfully applied our technology and products in diversified industry. Until now, many world-renowned companies have been our reliable clients and partners, including VFS Global, Opentext, Shiji Network, China four state-owned banks and etc. Also, our company has acquired many patents related to our products, including spot detection, camera trigger and etc. Our corporation culture puts emphasis on lifelong learning and team collaboration.

Certifications

Certificates.

After more than 20-year development and growth, Sinosecu Technology Corporation has achieved the market acceptable outcomes.

Packing & Delivery

Package.

Sinosecu full page passport reader is fully wrapped in a box which is thick and safe enough for the abroad shipment.

Delivery.

The shipment approaches for Sinosecu full page passport reader are diversified to cater for clients' demand.

FAQ

1.Are you manufacturer? Yes, we are manufacturers. We can provide the factory direct price. 2. Would you provide SDK for me? Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together. 3. What warranty for the products? According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). 4. Can we get the free sample? Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. 5. What's the delivery time? Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depends on exact quantity. 6. What is the after sale service? a. Our all products will provide 12 months warranty; b. Enough stock spare parts for guarantee; c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field; d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
