RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution

Large Image : RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution

Product Details:

Place of Origin:	Beijing, China
Brand Name:	Sinosecu

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$1,199.00/units >=1 units
Packaging Details:	Usually, one passport reader is packed in one small carton and the size is 402926cm : and if a customer places an bulk order, in this situation, those small cartons are packed in larger one, the size is 61cm x 42cm x 55cm.
Supply Ability:	2000 Unit/Units per Month ugent orders can provide overtime production

Contact Now

RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution

Description

Products Status:	Stock	Type:	Kiosk ID Card Reader
Scan Element Type:	CMOS	Colour Depth:	24 Bit
Interface Type:	Usb	Max Paper Size:	127*88 Mm
Optical Resolution:	500 DPI	Scan Speed:	1-2 Seconds
Warranty(Year):	1-Year	After-sales Service:	Others
Product Name:	Smart Gate Face Recognition ID Card And Passport Reader	Interface:	USB 2.0
OCR Camera:	HD 3.0 Megapixel Camera	Dimension:	235250148mm
Function:	RFID Reading, OCR Processing And Barcode Scanning	OCR Processing Speed:	1 Second
Illumination:	Visible, IR And UV	Certificate:	CE & FCC
Weight:	1.25 Kg	Application:	Airport Check-in, Kiosk Machines, Hotel Check-in, Auto Egate
Port:	Beijing

Product Description

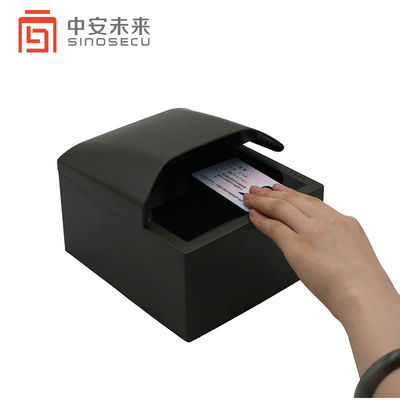

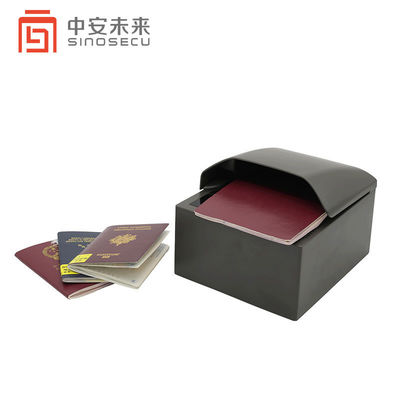

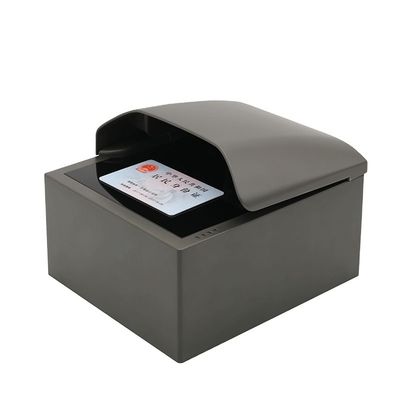

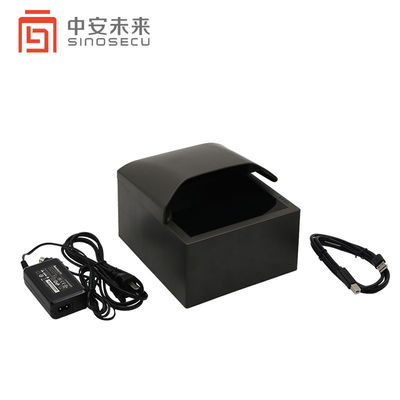

Smart Gate face recognition ID card and passport reader

In order to meet the needs of stations, schools, docks, supervisors, factories, buildings, intelligent district, clubs, enterprises and institutions, large-scale venues and other channels to achieve intelligent security management needs, we developed the solution of integrated ID documents reading and face recognition smart gates.

The people who have resident identity cards or passport can use the face recognition technology (1:1 identify) self-help through the gates and can also be collected on-site face information
The live photo will be compared to the local stored face information base (1:N identify) white or black list.
When the people bypass the gates, they will scan their passport or other ID documents on the passport reader device, the information such as name, date of birth, documents number and ect will be extracted and the head photo from the ID documents will also be cropped from the documents. The on-site captured photo will be compared to the photo cropped from the documents, if they match with each other, the gate will open automatically.

The price displayed here is just for reference, and we provide big discount for the future bulk order.

Technical Advantages

1. Multipurpose

The passport reader is able to recognize any document in compliance with ICAO 9303.Thanks to our powerful OCR engine, we are able to customize the local non-ICAO documents;

2. High accuracy

The deep learning algorithm can guarantee a very high face recognition and ID documents accuracy . The accuracy is the key factor for the smartgate solution

3. High integration

The face recognition functionality is already integrated in the passport reader device. The ID documents recognition and face matching can be finished in one device and one single step.

4. Unattended

The device can automatically detect and classify the documents. If the live photio and the document phot match with each other, the gate will open automatically.

Specifications

	MRZ	ICAO 9303 standard compliant documents: ID-1 (Identity Card) ID-2 (Passport, Visa) ID-3 (Passport)
	VIZ	Customized ID document research and OCR development
Reading Capaility	RFID	Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B); Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC); Support active/passive authentication;
	Contact card reading	Read smart card according to ISO/IEC 7816;
	Barcode Reading	1D: Code 128, Code 39, Interleaved 2 of 5; 2D: PDF 417, QR Code, Data Matrix , Aztec Code
Imaging	Resolution	500DPI
	Illumination	Visible, IR and UV
	Color Depth	24 bits/pixels
	Sensor	CMOS, 5.0 Megapixel
	Field of View	127mm*88mm
Softtware	Supported Operation System	Windows 7, 8, 10, Vista, XP (32/64 bit) Windows Server 2003 & 2008 (32/64 bit) Linux Ubuntu, CentOS, RedHat
	Software Development kit	Complete OCR SDK including DLLs, OCXs, Samples and demo program
	Programming Languages	C#, C/C++, Java, Delphi, Visual Basic 6.0, VB.NET
Hardware	Dimension	166190103.30mm (without cover)
	Dimension	166190142.80mm(with cover)
	Weight	2.10-2.20kg (Net)
	Weight	2.60-2.70kg (Gross)
	Status LEDs	Power, Ready, Error and Warning
	Power	100-240 V, 50-60Hz, 0.8A input
	Power	12V, 2A output
	Case	ABS plastic
	Operating temperature	-10℃ to 50℃ operating;

Key Features

Contactless RFID chip reading

Standard: ISO14443 Type A/B

Contact smart card reading

Standard: ISO7816

MRZ Decoding to get Phrased data such as Nname, date of birth, Document number, date of expiry and etc.

Certifications

Packing & Delivery

Each passport reader is packed in one small carton and 8 small cartons will be packed in one big carton for the bulk order.

The passport readers are usually shipped out by air, and we have been partnered with FedEx, DHL, TNT and UPS.

Our Company

Sinosecu is a company focusing on the ID documents verification and authentication. Thanks to our powerful OCR software, we develop ID documents recognition on different platforms. The passport reader device is a combination of OCR software and the hardware. Our OCR mobile SDK is specially designed for Android and iOS systems, and it is ideal solution for the applications that are not able to access to internet. Our cloud OCR SDK enable the customer to upload the image to the server and structured data will be returned within seconds.
Now our customers is from over 100 countries around the world, and our products are successfully used in different industries such as bank& financial institutions, transportation, hospitality and tourism, access control, gated community, government secto, telecoms, retailers.
