1- Fast and Passport Scanner Speed OCR Processing in Just 1 Second for Security Checks

Large Image : 1- Fast and Passport Scanner Speed OCR Processing in Just 1 Second for Security Checks

Product Details:

Place of Origin:	Beijing, China
Brand Name:	Sinosecu

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$789.00/units 2-19 units

Contact Now

1- Fast and Passport Scanner Speed OCR Processing in Just 1 Second for Security Checks

Description

Products Status:	Stock	Type:	ID Document Scanner
Scan Element Type:	CMOS	Colour Depth:	24 Bit
Interface Type:	Usb	Max Paper Size:	127*88 Mm
Optical Resolution:	500 DPI	Scan Speed:	1-2 Seconds
Warranty(Year):	1-Year	After-sales Service:	Others, Call Center And On-line Technical Support
Software Development Kit (SDK):	Yes	Color:	Black
Product Name:	OCR Travel Document Scanner ID Document Scanner	Interface:	USB 2.0
Window Size:	127mm*88mm	OCR Camera:	HD 3.0 Megapixel Camera
Dimension:	175199140mm	Function:	RFID Reading, OCR Processing And Barcode Scanning
OCR Processing Speed:	1 Second	Illumination:	Visible, IR And UV
Certificate:	CE & FCC	Weight:	1.25 Kg

Product Description

OCR travel document scanner ID document scanner

Sinosecu Kiosk passport reader solves the problem of having to manufacture a kiosk to fit ID/passport scanning hardware to a kiosk. In the past there were many scanning solutions on the market with different shapes and dimensions. Sinosecu passport reader has been specially designed for self service kiosk machines so that the integrator or kiosk manufacturer have the easy job to making a rectangular easily accessible hole where this device easily fits.
Its slim design makes it ideal for integration with self-serve type kiosks at airports, hotels, banks, transportation terminals.

Sinosecu OCR document scanner offers the following benefits:

 Passport and ID reader designed specifically for integrating into kiosks, desks, vending machines etc.

 Glare-free image scans by hardware-assisted reflection removal that achieve even more accurate OCR results

 High resolution 500 DPI camera imaging with visible white & IR illumination

 Slim and compact with no moving part inside

 provide optimal solution for scanning ID-1 and ID-2 size cards like national ID cards, driver’s licenses

 4 programmable LED based feedback lights

Applications:

1. Hotel check-in Kiosk machines

2. Smart gate for border control and aiports

3. Access control management system

4. Tax Refund & Money Exchange

5. Car Rental informaiton registration

6. Visitor management

7. Passport and Visa Issurance

8. Banking self kiosk machines and desktop use

9. Casino and retail shops (Age verification)

10. Hospitals & Clinics patients registration

Regarding Integration:

Our passport scanning solution is a perfect combination of passport reader machine and the software development kit (SDK).
Here below are the contents in the SDK:
1. Demo & Driver
2. Dll & Lib
3. Documentation (Software development Manual, user Manual)
4. Sample codes
The customer is able to integrate the passport reader device via DLL, OCX and websocket. The reader can be integrated seemlessly in any client/server and web based application.

Key Features

Contactless RFID chip reading

Standard: ISO14443 Type A/B

Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC);
Support active/passive authentication.

Capture multiplle images

The pcssport reader device is able to captur white, Infrared and ultro Violet images

MRZ decoding to get phrased data

ICAO 9303 compliant documents:
ID-1 (Identity Card)
ID-2 (Passport, Visa)
ID-3 (Passport)

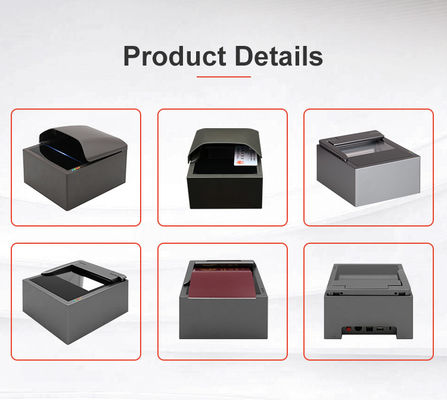

Detailed Images

Specifications

	MRZ	ICAO 9303 standard compliant documents: ID-1 (Identity Card) ID-2 (Passport, Visa) ID-3 (Passport)
		VIZ	Customized ID document research and OCR development
Reading Capaility	RFID	Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B); Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC); Support active/passive authentication;
		Contact card reading	Read smart card according to ISO/IEC 7816;
		Barcode Reading	1D: Code 128, Code 39, Interleaved 2 of 5; 2D: PDF 417, QR Code, Data Matrix , Aztec Code
Imaging	Resolution	500DPI
		Illumination	Visible, IR and UV
		Color Depth	24 bits/pixels
		Sensor	CMOS, 5.0 Megapixel
		Field of View	127mm*88mm
Softtware	Supported Operation System	Windows 7, 8, 10, Vista, XP (32/64 bit) Windows Server 2003 & 2008 (32/64 bit) Linux Ubuntu, CentOS, RedHat
		Software Development kit	Complete OCR SDK including DLLs, OCXs, Samples and demo program
		Programming Languages	C#, C/C++, Java, Delphi, Visual Basic 6.0, VB.NET

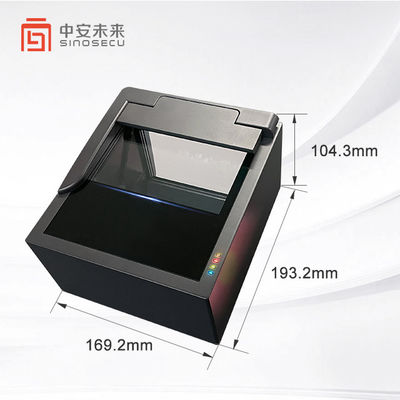

Hardware	Dimension	166190103.30mm (without cover)
	Dimension			166190142.80mm(with cover)
		Weight	2.10-2.20kg (Net)
		Weight		2.60-2.70kg (Gross)
		Status LEDs	Power, Ready, Error and Warning
		Power	100-240 V, 50-60Hz, 0.8A input
		Power		12V, 2A output
		Case	ABS plastic
		Operating temperature	-10℃ to 50℃ operating;

Certifications

Our Company

Sinosecu is a company focusing on the ID documents verification and authentication. Thanks to our powerful OCR software, we develop ID documents recognition on different platforms. The passport reader device is a combination of OCR software and the hardware. Our OCR mobile SDK is specially designed for Android and iOS systems, and it is ideal solution for the applications that are not able to access to internet. Our cloud OCR SDK enable the customer to upload the image to the server and structured data will be returned within seconds.
Now our customers is from over 100 countries around the world, and our products are successfully used in different industries such as bank& financial institutions, transportation, hospitality and tourism, access control, gated community, government secto, telecoms, retailers.
