OCR ID Scanner and MRZ Reader for Airport 500 DPI Resolution 127mm*96mm Window Size

Name: OCR ID Scanner and MRZ Reader for Airport 500 DPI Resolution 127mm*96mm Window Size
Brand: Sinosecu Technology Corporation.
Price: 1.00 USD
Availability: InStock

All Products

Passport Reader for KR
(9)

Passport Reader for APR
(120)

Passport Reader for EBR
(49)

Passport Reader for PSPR
(39)

Sinosecu Passport Reader
(3)

Certification

I'm Online Chat Now

OCR ID Scanner and MRZ Reader for Airport 500 DPI Resolution 127mm*96mm Window Size

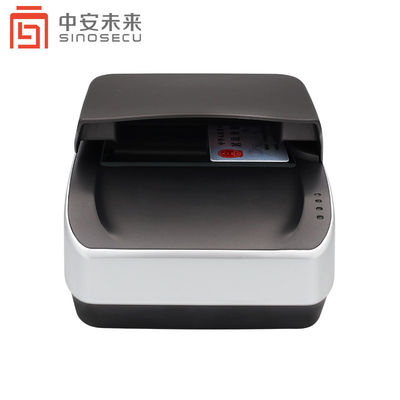

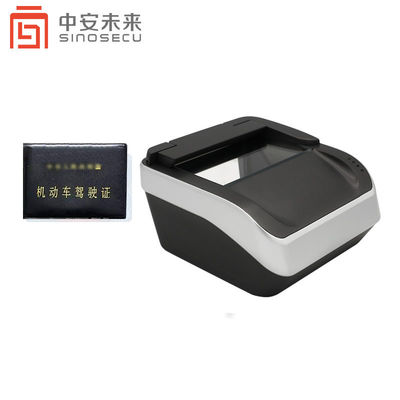

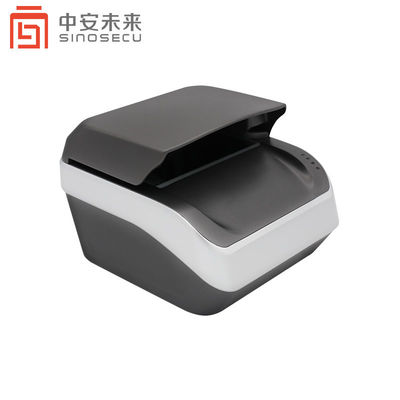

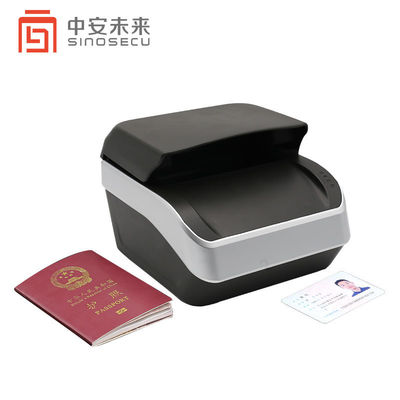

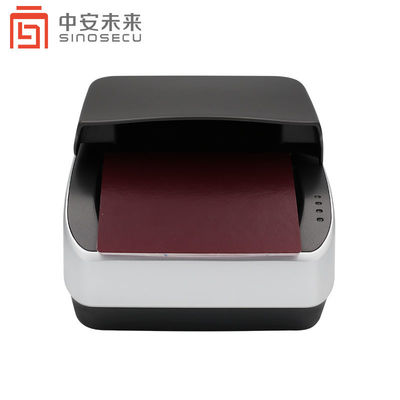

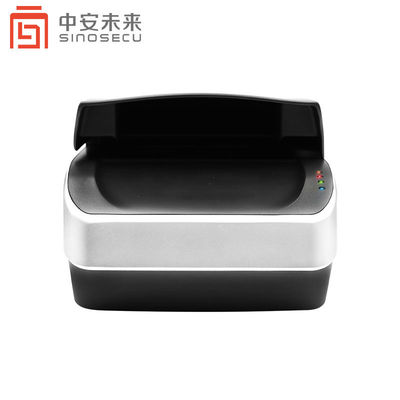

Large Image : OCR ID Scanner and MRZ Reader for Airport 500 DPI Resolution 127mm*96mm Window Size

Product Details:

Place of Origin:	Beijing, China
Brand Name:	Sinosecu
Certification:	CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$1,299.00/units >=1 units

Contact Now

OCR ID Scanner and MRZ Reader for Airport 500 DPI Resolution 127mm*96mm Window Size

Description

Products Status:	Stock	Type:	Document Scanner
Scan Element Type:	CMOS	Colour Depth:	24 Bit
Interface Type:	Usb	Max Paper Size:	Passport Size
Optical Resolution:	500 DPI	Scan Speed:	2 Seconds
Warranty(Year):	1-Year	After-sales Service:	Others
Product Name:	Passport Scanner	Function:	RFID Reading, OCR Processing
Interface:	USB 2.0	Window Size:	127mm*96mm
Camera:	HD 5.0 MP Camera	Dimension:	175199140mm
Warranty:	1 Year	Illumination:	Visible, IR And UV
Resolution:	500 DPI

Product Description

OCR ID Scanner is a multi-purpose document scanner based on advanced OCR technology. It can automatically capture data from ICAO compliant and Non-ICAO travel documents, including passport, e-passport, visa, ID card and driver license. It provides an ideal solution for fast identity verification.

1. Unattended (Auto trigger and detection of ID documents)
2. Very high accuracy OCR
3. ICAO compliance
4. MRZ Decoding
5. RFID Reading
6. Full page processing
7. Multiple-light illumination (visible/IR/UV)
8. Provide customer with SDK (Software Development Kit)
9. High resolution image
10.Robust and Compact (No moving part inside and small size)

Key Feature

Support ICAO compliant & Non-ICAO travel documents

Obtain digital data from contactless chips (RFID)

Provide customized service for local documents

Specification

Supported Documents
Machine Readable Zone	ICAO 9303 standard compliant document
	ID-1 (Identity Card)
	ID-2 (Passport, Visa)
	ID-3 (Passport)
Visual Inspection Zone	Customization based on client's requirements
RFID	Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
	Read smart card according to ISO/IEC 7816
	Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC)
	Support active/passive authentication
Resolution	500 DPI
Illumination	Visible, IR (850nm) and UV (365nm)
Color Depth	24 bits/pixels
Sensor	CMOS, 5.0 Megapixels (2592*1944)
Image Format	JPG, BMP, PNG
Field of View	127mm*88mm
Software
Supported Operation System	Windows 7,8,10, Vista, XP (32/64 bit WHQL certified) Windows Server 2003 & 2008 (32/64 bit) Linux Ubuntu, CentOS, RedHat
Development Kit	Complete OCR SDK including DLLS, OCXs, WebSocket, Samples and Demo program
Programming Languages	C#, C/C++, JAVA, Delphi, Visual Basic 6.0, VB.NET
Hardware
Dimension	175199140mm
Weight	1.25kg (Net)
	1.75kg (Gross)
Interface	USB 2.0
Status LEDs	Power, Ready, Error and Warning
Buzzer	Build in buzzer
Operating humidity	20%-95% (non-condensing)
Warranty	1 year warrantly, extensible

About US

Sinosecu Technology Corporation is the world's leading developer and provider of OCR (optical character recognition) technology and products in different fields. Through a long term cooperation with Tsinghua University, we have successfully applied our technology and products in diversified industry. Until now, many world-renowned companies have been our reliable clients and partners, including VFS Global, Opentext, Shiji Network, China four state-owned banks and etc. Also, our company has acquired many patents related to our products, including spot detection, camera trigger and etc. Our corporation culture puts emphasis on lifelong learning and team collaboration.

FAQ

Q: can you make OEM for products?
A: OEM products are available for customers as long as customers meet the MOQ. Also we have engineers for logo and products design for customers.

Q: what about delivery time?
A: Bulk order will be delivered after receiving payments.

Q: what warranty and after-sale service do you offer?
A: one-year warranty. During warranty period, we will be responsible for the damage caused by non-human factors. If it is over the warranty period, we will continue to provide service at reasonable price.

Q: how about the shipping way?
A: There are DHL, FedEx, TNT, UPS, air cargo, by sea (we also can ship goods by your shipping account or other agent you provided)
