OCR MRZ Desktop ID Card Reader and Document Scanner Ideal in Need of Image Scanning

Large Image : OCR MRZ Desktop ID Card Reader and Document Scanner Ideal in Need of Image Scanning

Product Details:

Place of Origin:	Beijing, China
Brand Name:	siosecu

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$1,299.00/units >=1 units
Packaging Details:	Export Box

Contact Now

OCR MRZ Desktop ID Card Reader and Document Scanner Ideal in Need of Image Scanning

Description

Type:	Document Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, IEEE 1394, COM
Max Paper Size:	Passport Size	Optical Resolution:	500dpi
Scan Speed:	Within 3 Seconds	Warranty(Year):	1-Year
After-sales Service:	Call Center And On-line Technical Support	Software Development Kit (SDK):	Yes
Interface:	USB 2.0	Product Name:	Access Control Passport Reader
Application:	Access Control	Warranty:	1 Year
OEM:	Support	Dimension:	166190103.3mm
Resolution:	500 DPI	Image Format:	JPG, BMP, PNG
Color Depth:	24 Bits/pixels	Style:	Equipment

Product Details

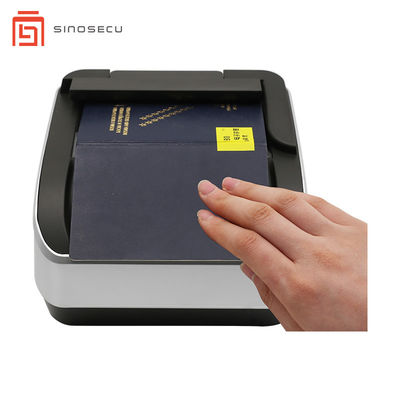

SINOSECU OCR MRZ Desktop Passport Reader

The Sinosecu 24 bits mrz ocr passport reader is a full page, multi-illumination ePassport reader. It captures ultraviolet and infrared images as well the full page of a passport in color. In a simultaneous single action the reader also decodes the machine readable zone (MRZ) and processes RFID data – including the holder's image – from the chip.

The Sinosecu 24 bits mrz ocr passport reader automatically detects when a document with machine readable data has been presented. Additionally, it's able to compensate for out-of-position MRZ data, so that the advanced recognition engine reliably provides highly accurate and very fast document reading ability, allowing large volumes of documents and smart cards to be processed quickly and efficiently. The Sinosecu passport reader has a compact, robust design and is designed for years of heavy-duty, frontline use.

The Workflow of Sinosecu Passport Reader

Applications

Embassy

Airport Check In Kiosk

Hotel

Travel Agency

Bank

Duty free shop

Border Control

Trade Fair

Access Control

Product Feature

√ Ideal for integrating into conters, kiosks and gates

√ Flatbed reader ideal for identification at kiosks requiring MRZ

√ Support for ICAO compliant and non compliant travel documents

√ High quality document reader for accurate ID/ driver license validation and authentication

√ Entry level compact document reader designed for fast, whole page and barcode data capture

√ For fast image processing and document authentication specifically for kiosk and egate document checking

Accuary

Speed

Multi-function

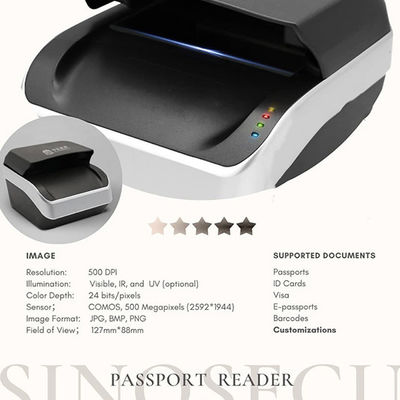

Specification

Supported Documents
Machine Readable Zone	ICAO 9303 standard compliant documents: ID-1 (Identity card) ID-2 (Passport, Visa) ID-3 (Passport)
Visual Inspection Zone	Customized OCR Service for local documents
RFID	Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B) Read smart card according to ISO/IEC 7816 Support e-Passport Basic Access Control (BAC) & Extended Access Control (EAC) Support active/Passive authentication
Barcode	1D: Code 128, Code 39, Interleaved 2 of 5 2D: PDF 417, QR Code, Data Matrix, Aztec Code
Resolution	500 DPI
Illumination	Visible, IR (850NM) and UV (365nm)
Color Depth	24 bits/pixels
Sensor	CMOS, 5.0 Megapixels (2592*1944)
Image Format	JPG, BMP, PNG
Field of View	127mm*88mm
Supported Operation System	Window 7,8,10,Visita, XP (32/64 bit WHQL certified) Window Server 2003 & 2008 (32/64 bit) Linux Ubuntu, CentOS, RedHat, Android
Development Kit	Complete OCR SDK including DLLs, OCXs, WebSocket, Samples and Demo program
Programming Languages	C#, C/C++, JAVA, Delphi, Visual Basic 6.0, VB.NET
Dimension	166190103.3mm(without cover) 166190142.8mm(with cover)
Interface	USB 2.0
Status LEDs	Power, Ready, Error and Warning.
Buzzer	Build in Buzzer
Power	Input: AC 100-240V, 50-60Hz, 0.8a Output: DC 12V, 2A
Warranty	1 year warranty, extensible

Demo Application

About US

Sinosecu Technology Corporation

Sinosecu Technology Corporation develops, manufactures and sells intelligent software and device based on OCR (Character Optical Recognition) technology. Our worldwide customer's network is over 100 countries, which covers bank& financial institutions, transportation, hospitality and tourism, access control, gated community, government sector, telecoms, retailers, insurance company and other service oriented companies.

Our main offerings include Passport Reader, Bank Card Reader and Kiosk Reader. OCR SDK and web service API is available for our customer to build on their custom applications. We strive to make business processes easier and more flexible with our full site of desktop, mobile and cloud solution.
